Automatic Swiss Roll Cake Production Line
Continuous Spreading, Filling, and Rolling for Stable Swiss Roll Quality and High-Output Production
In industrial Swiss roll production, sheet thickness, filling accuracy, and rolling consistency directly affect product shape, weight control, and yield. Yucho’s automatic Swiss roll cake production line integrates mixing, depositing, baking, filling, rolling, cutting, and cooling into one continuous process. This helps manufacturers maintain stable roll quality across long production runs and multiple shifts.
The line also supports layer cake production, so one investment can cover both Swiss rolls and layered cake products. Whether you need a compact line or a high-capacity full production system, we can match the line configuration to your plant layout, output requirements, and automation level.
Trusted Swiss Roll Production Line Manufacturer
Yucho Bakery Equipment manufactures industrial cake and bakery machines in China for customers in more than 65 countries. From standalone equipment to complete production lines, we support food manufacturers with line design, in-house assembly, factory testing, and export delivery.

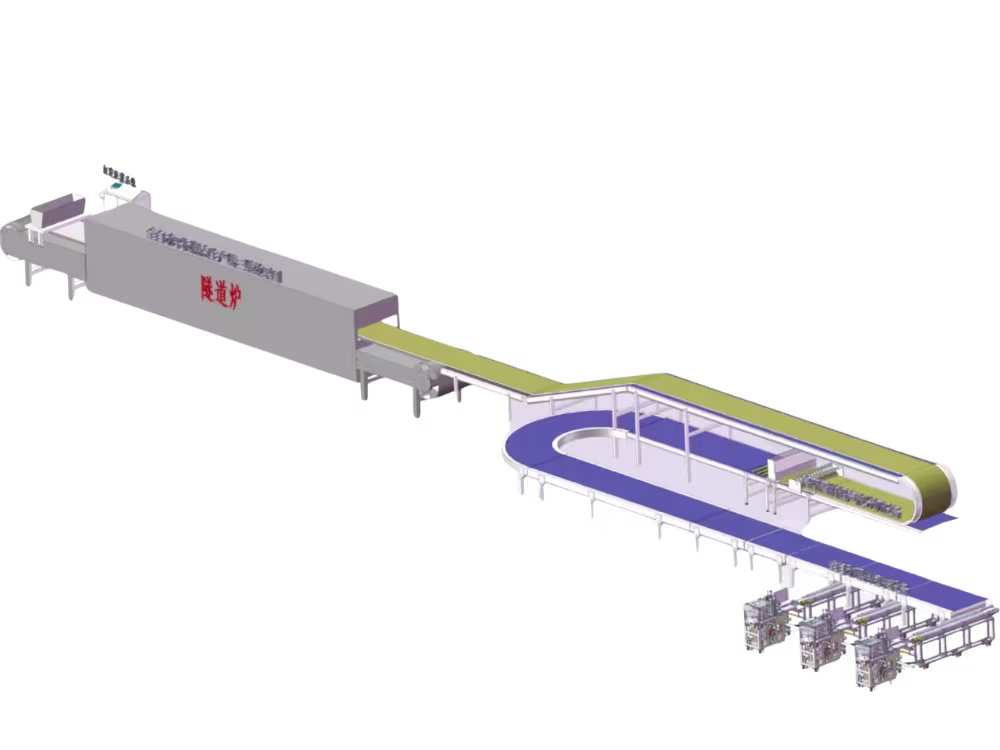

What Is an Automatic Swiss Roll Cake Production Line?
An automatic Swiss roll cake production line is an industrial continuous production system that spreads, bakes, fills, rolls, and cuts sponge cake sheets under controlled production conditions. The batter is spread in an even sheet onto a steel belt, baked in a tunnel oven, then filled with cream, rolled or layered, and cut to size. All of this happens in one linked process instead of separate manual steps.
For industrial bakeries producing Swiss rolls, cream rolls, layer cakes, or shaped cake products, consistent sheet baking and accurate filling are key to roll shape, cut quality, and finished-product appearance. Compared with semi-automatic or manual rolling methods, a continuous Swiss roll production line delivers more stable product dimensions, more repeatable output, and lower labor dependence.
Key Advantages of the Automatic Swiss Roll Cake Production Line
Continuous Automated Production from Depositing to Cooling
The line integrates batter depositing, baking, filling, rolling, pressing, cutting, and cooling into one linked production workflow. This reduces manual transfer between stages, improves process continuity, and helps keep product flow stable from start to finish.
Steel Belt Tunnel Baking for Consistent Cake Sheet Quality
The gas-fired steel belt tunnel oven provides uniform heating and accurate temperature control across the full baking process. This supports even sheet color, stable moisture control, and a sponge structure that rolls cleanly without cracking.
Accurate Filling and Stable Roll Forming
The cream injection system applies filling evenly across each cake sheet, while the turning, flipping, and pressing units help form the roll with consistent tightness and structure. This supports a uniform spiral appearance, accurate filling ratio, and cleaner cross-sections after cutting.
Synchronized Operation for High-Output, Consistent Production
Whole-line linked control with adjustable speed keeps each section running in coordination during continuous production. This helps maintain stable product size, weight, and appearance while improving throughput compared with batch or semi-automatic processing.
One Line for Swiss Rolls and Multiple Cake Formats
In addition to Swiss rolls, the line can also produce layer cakes, cream rolls, tiger-skin cakes, triangle cakes, and square cakes. This gives manufacturers more flexibility to expand product variety and improve equipment utilization on one production platform.
Hygienic Food-Contact Design for Industrial Production
All food-contact parts are made from SUS304 food-grade stainless steel. The machine structure is designed to support daily cleaning, reduce product residue, and meet hygiene requirements in industrial bakery production.
Applications of the Swiss Roll Cake Production Line
The automatic Swiss roll cake production line is designed for continuous production of a wide range of sponge cake products, including:
- Swiss rolls
- Cream rolls and filled roll cakes
- Layer cakes
- Tiger-skin cakes
- Triangle cakes
- Square cakes
- Customized roll cake products with different flavors and fillings
The line can be supplied as a complete system or engineered to integrate with your existing equipment, based on your production capacity, plant layout, and automation requirements.
How the Swiss Roll Production Line Works
From batter preparation to final cooling, the line is designed to deliver continuous sheet production, accurate filling, consistent roll forming, and smooth transfer to downstream packaging or processing.
Mixing and Depositing
Ingredients are mixed into a uniform batter, while the oil spraying machine coats the steel belt. The batter depositor then spreads the batter into an even sheet of controlled thickness, creating a stable base for consistent baking and rolling.
Tunnel Baking
The cake sheet travels through the gas-fired steel belt tunnel oven, where zoned heating and accurate temperature control produce an evenly baked sheet with stable color, texture, and flexibility.

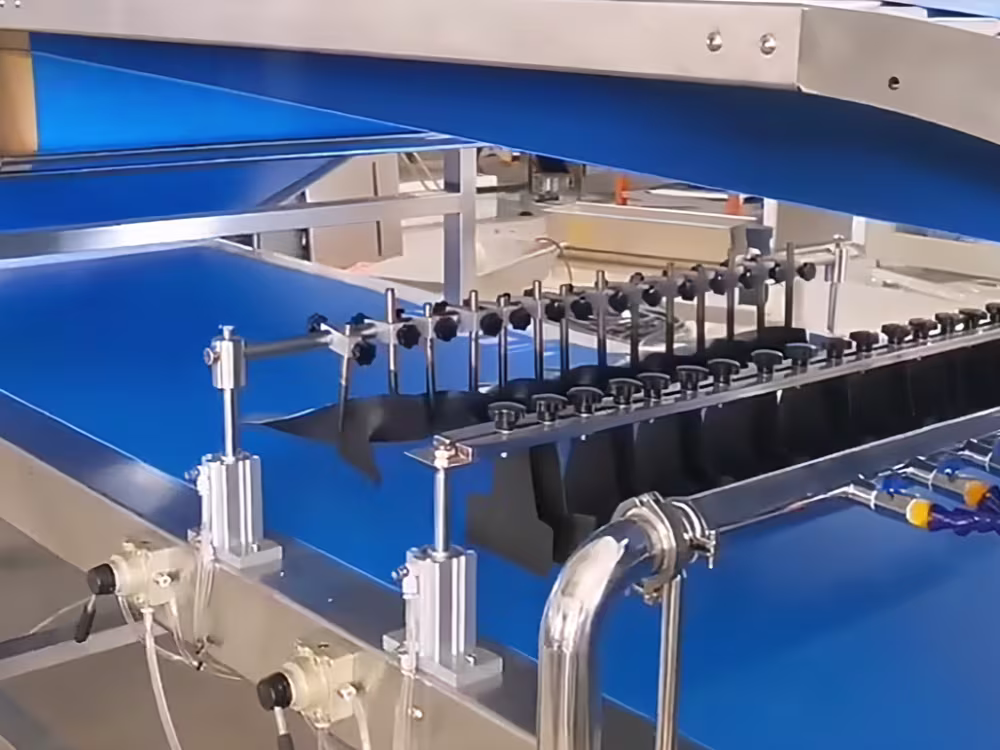

Filling and Roll Forming
After baking, the sheet is transferred through the filling and forming section. The cream injection system applies filling evenly, while the turning, flipping, and pressing units help form the Swiss roll or layered structure with consistent shape and tightness.
Cutting and Cooling
The formed product is cut to the required length by the cross-cutting machine, then carried through the cooling conveyor to reach a stable handling temperature. It is then ready for packaging or transfer to the next stage of production.
Main Features and Technical Specifications Overview
- Continuous production line for Swiss rolls and layered roll cakes
- Mixing system with automatic batter preparation
- Oil spraying machine for even belt coating
- Batter depositor for uniform sheet spreading
- Gas-fired steel belt tunnel oven with accurate temperature control
- Turning machine and cutting unit for sheet handling
- Cream injection system for precise filling distribution
- Cake flipping device and pressing unit for roll and layer forming
- Cross-cutting machine for consistent product length
- Cooling conveyor for stable product temperature before packaging
- Whole-machine linked operation with adjustable speed
- SUS304 food-grade stainless steel for food-contact parts
- Compatible with Swiss roll and layer cake production
Why Precise Filling and Rolling Control Matters in Swiss Roll Production
Filling distribution and rolling tension are key process variables affecting final Swiss roll quality. Too little filling or loose rolling can lead to gaps, weak structure, and poor slice appearance. Too much filling or excessive pressure may cause cream to squeeze out, the sheet to crack, or the roll to lose its round shape.
Manual or semi-automatic methods make it difficult to hold filling weight and roll tightness within a narrow range across a full shift. An automated cream injection system, combined with linked flipping and pressing units, lets production teams keep filling and forming within defined tolerances, reducing waste and improving consistency batch after batch.
Technical Parameters and Capacity Range
| Parameter | Specification |
|---|---|
| Model | YC-RSJ400 / YC-RSJ800 / YC-RSJ1200 |
| Production Capacity | 200–1000 kg/hour |
| Line Dimensions (L × W × H) | (20–60 m) × (1–10 m) × 4000 mm |
| Power Supply | 380 V |
| Installed Power | 25.0 kW |
| Reference Flour Handling Capacity | Up to 500 kg/hour |
| Operating Mode | Whole-line linked control with adjustable speed |
| Food-Contact Material | SUS304 food-grade stainless steel |
| Country of Origin | China |
| Note | Final specifications may vary by model, product type, and line configuration. Contact us for parameters matched to your project. |
Available Configurations and Customization Options
The automatic Swiss roll cake production line can be customized to match different plant layouts, production capacities, product types, and full-line integration requirements.
Model and Capacity Matching
Three standard models, YC-RSJ400, YC-RSJ800, and YC-RSJ1200, cover outputs from 200 to 1000 kg/hour. Line capacity can be matched to your target output, whether you are scaling up from semi-automatic production or running high-volume continuous lines.
Line Layout and Length
Line length and width can be adjusted to fit your available floor space and product flow, with layouts planned around your facility's entry, exit, and utility points.
Product and Forming Options
Filling, forming, and cutting sections can be configured for Swiss rolls, layer cakes, cream rolls, tiger-skin cakes, triangle cakes, or square cakes, depending on your product portfolio.
Connection with Upstream and Downstream Equipment
The line can be engineered to connect with existing batter preparation equipment, sponge cake aerators, decorating systems, or packaging machines as part of a complete automatic cake production line.
Our Certifications
We provide certification and qualification documents to support access to international markets and customer quality assurance requirements.
Our Manufacturing Strength
With 35+ years of bakery equipment experience, Yucho manufactures every Swiss roll production line in-house and supports customers with stable build quality, tested performance, and practical engineering service.
Our Manufacturing Strength
With 35+ years of bakery equipment experience, Yucho manufactures every Swiss roll production line in-house and supports customers with stable build quality, tested performance, and practical engineering service.
Why Choose Yucho for Swiss Roll Production Equipment
Project Support and Service
35+ Years of Bakery Equipment Experience
Yucho Bakery Equipment has more than 35 years of experience in bakery processing equipment manufacturing, with machines supplied to customers in more than 65 countries.
Custom Layout and Solution Support
Our engineering team works directly with your production requirements to recommend the right line configuration, capacity, and layout for your facility.
Fast Technical Response
After receiving your production requirements, we can usually provide a tailored production line proposal within 3 days.
Export Documentation and Shipment Support
We prepare export documentation and coordinate shipment arrangements to support international bakery equipment projects smoothly.
Factory and Quality Control
Direct Manufacturer, Not Just a Trading Company
Yucho Bakery Equipment manufactures its equipment directly rather than acting only as a trading intermediary, giving customers direct access to engineering and production teams.
In-House Manufacturing and Testing
Equipment is manufactured and tested in-house, allowing direct control over build quality and performance verification before shipment.
Machine Testing Before Shipment
Each line is tested prior to shipment to confirm performance against agreed specifications and reduce commissioning risk on site.
Support for Inspection and Certification
We support customer or third-party inspection requests and can assist with certification documentation required for different export markets.
Related Products
Chocolate Depositor
Standard One Shot Depositor
TTJ40 Chocolate Tempering Machine
TYJ Chocolate Enrobing Machine with Cooling Tunnel
FAQs
What is the difference between an automatic Swiss roll cake production line and a semi-automatic setup?
An automatic Swiss roll cake production line links depositing, baking, filling, rolling, cutting, and cooling into one continuous process with synchronized speed control. Compared with a semi-automatic setup, it reduces manual transfer between stages and helps improve consistency in product size, weight, filling distribution, and finished appearance.
What products can this Swiss roll production line make?
The line is designed primarily for Swiss rolls and can also produce cream rolls, layer cakes, tiger-skin cakes, triangle cakes, square cakes, and customized roll cake products with different fillings and flavors.
Can the line produce both Swiss rolls and layer cakes?
Yes. The line can be configured for both rolled and layered cake formats, allowing manufacturers to produce Swiss rolls and layer cakes on the same production line.
What capacity options are available?
Standard models YC-RSJ400, YC-RSJ800, and YC-RSJ1200 cover capacities from 200 to 1000 kg/hour. We recommend the right model based on your target output, product type, and production requirements.
How much space does the line require?
Depending on the model and configuration, line length typically ranges from 20 to 60 meters, with width from 1 to 10 meters and height around 4000 mm. We can plan the layout according to your available floor space and plant conditions.
Can the line connect with our existing equipment?
Yes. The Swiss roll cake production line can be engineered to connect with existing mixing, aeration, cooling, or packaging equipment as part of a complete automatic cake production system.
What information should we provide before getting a quotation?
We recommend sharing your target products, required production capacity, product dimensions, filling type, available installation space, fuel and power conditions, and any plans to integrate with existing equipment.
Do you provide installation guidance and after-sales support?
Yes. Our team provides technical support throughout the ordering process and can assist with installation guidance, commissioning, and after-sales service after delivery.
