Commercial Planetary Mixer
Multifunctional Mixing for Stable Results Across Egg Whipping, Cream Mixing, Batter Blending, and Light Dough Kneading
In commercial bakery and food production, mixing consistency directly affects product texture, output quality, and batch-to-batch repeatability. Yucho’s commercial planetary mixer combines a professional planetary mixing movement with a multifunctional attachment system, helping bakeries, cake shops, restaurants, hotels, and food factories maintain stable mixing results across a wide range of products and production volumes.
Available in seven capacities from 10L to 80L, the machine can be matched to operations of any scale — from a single-location cake shop to a high-output industrial food factory. Whether you need a standalone unit or a machine that integrates into a larger production setup, we can match the configuration to your output requirements, voltage standards, and operational needs.
Trusted Commercial Bakery Equipment Manufacturer
Yucho Bakery Equipment manufactures industrial cake and bakery machines in China for customers in more than 65 countries. From standalone equipment to complete production lines, we support food manufacturers with machine design, in-house assembly, factory testing, and export delivery.
What Is a Commercial Planetary Mixer?
A commercial planetary mixer is an industrial food mixing machine designed for versatility across multiple mixing tasks. Unlike spiral dough mixers, which are purpose-built for heavy bread dough, the planetary mixer is optimized for egg whipping, cream mixing, batter blending, and light dough kneading—making it the standard choice for cake production, pastry preparation, and general bakery mixing.
Its defining feature is planetary mixing: the attachment rotates around the bowl while spinning on its own axis, covering the entire bowl surface and eliminating dead angles. The result is thorough, even mixing regardless of ingredient viscosity or batch size.
For bakeries, cake shops, restaurants, hotels, and food factories producing products from sponge cake batter to cream fillings and light dough, the commercial planetary mixer delivers repeatable output with less process variation than manual or batch mixing methods.
Key Advantages of the Commercial Planetary Mixer
Planetary Rotation System for Even Mixing
The professional planetary mixing movement rotates the agitator around the bowl while spinning it on its own axis, achieving full, uniform mixing with no dead angles. This ensures consistent ingredient incorporation whether you are working with thin batters, whipped cream, or light dough, across the full duration of a production run.

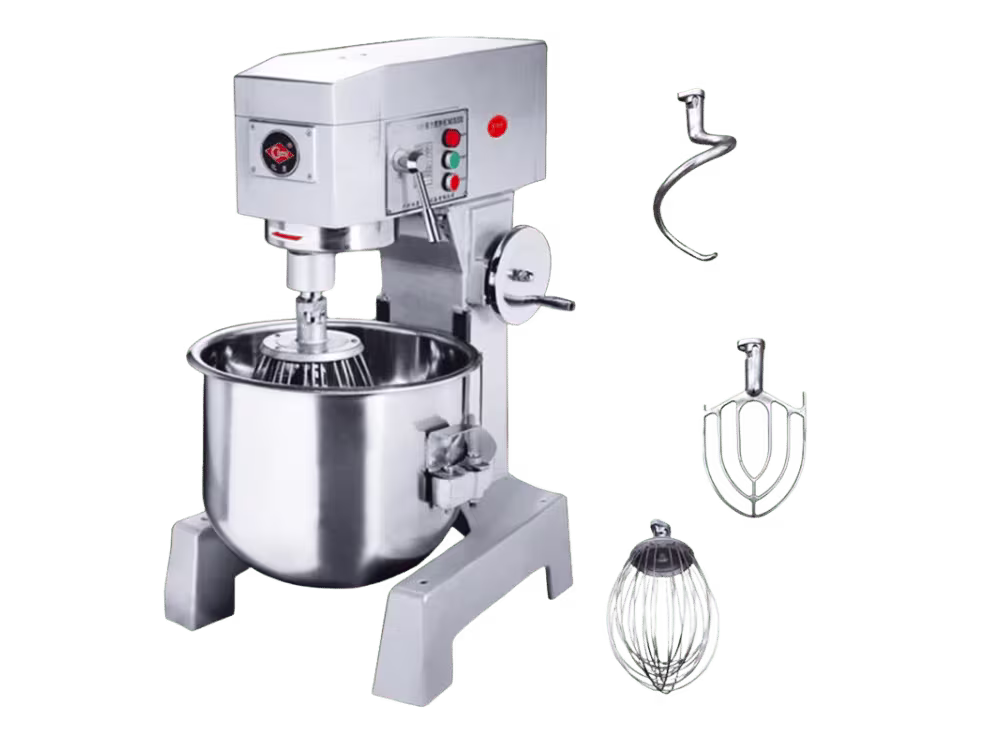

Three Standard Mixing Attachments
Each unit from 10L to 50L comes standard with a dough hook for light dough kneading, a wire whisk for egg whipping and cream mixing, and a mixing paddle for cake batter, stuffing, and frosting. For 60L and 80L models, an optional ball whisk and trolley are available to support higher-volume and heavier-duty mixing requirements.
Variable Speed Control for Different Raw Materials
Multi-speed adjustment allows operators to switch smoothly between slow mixing and fast whipping depending on the raw material and recipe stage. This flexibility supports everything from delicate egg whipping to firmer batter blending, all without changing machines.
Sturdy and Stable Structure for Continuous Operation
A heavy-duty cast iron body combined with an anti-vibration design keeps the machine stable during long production runs. Low noise operation makes the commercial planetary mixer well suited to continuous use in busy commercial kitchens and food factory environments.
Food-Grade Stainless Steel Bowl
The mixing bowl and all food-contact parts are manufactured from food-grade stainless steel, meeting food hygiene requirements while providing corrosion resistance and easy cleaning between batches.
Wide Capacity Selection and Flexible Voltage Support
Seven capacity options from 10L to 80L allow the machine to be matched precisely to your production volume, from a small bakery shop to an industrial food factory. Custom voltage support across 220V and 380V standards ensures compatibility with local power requirements across different markets.
Applications of the Commercial Planetary Mixer
The commercial planetary mixer is suited to a wide range of food service and production environments, including:
- Bakeries and pastry shops
- Cake shops and dessert production facilities
- Restaurants and hotel kitchens
- Food factories and industrial production lines
Typical mixing applications include egg whipping, cream mixing, mousse preparation, sponge cake batter blending, frosting mixing, stuffing preparation, and light dough kneading. You can operate the machine as a standalone unit or integrate it into a broader production setup based on your facility’s layout, capacity needs, and automation preferences.
How the Commercial Planetary Mixer Works
From ingredient loading to final mixing, the commercial planetary mixer is designed to deliver even mixing performance, flexible product handling, and stable operation for daily bakery and food production.
Attachment Selection
Operators select the appropriate attachment based on the product type and mixing objective. The dough hook is used for light dough kneading, the wire whisk is suitable for egg whipping, cream mixing, and aerated batter preparation, while the mixing paddle is commonly used for cake batter, frosting, and filling mixtures. This allows one machine to support multiple mixing tasks across different product lines.
Ingredient Loading and Speed Setting
Raw materials are loaded into the food-grade stainless steel bowl, and the operator sets the appropriate mixing speed according to the recipe stage. Lower speeds are suitable for initial blending or heavier materials, while higher speeds are used for whipping eggs, cream, or lighter batter systems. The variable speed design gives operators more control over different product requirements.
Planetary Mixing Movement
During operation, the attachment rotates around the bowl while spinning on its own axis, creating a planetary mixing motion that covers the full bowl area without leaving unmixed zones. This mixing principle helps achieve more uniform ingredient incorporation and more consistent texture compared with simpler single-motion mixing methods.
Stable Output and Batch Turnover
After mixing is completed, the finished material can be discharged for the next production step, whether for baking preparation, filling, or further processing. The machine’s sturdy frame, anti-vibration structure, and easy-to-clean bowl and attachments help support stable operation, efficient batch turnaround, and reliable daily use in commercial kitchens and food production environments.
Main Features and Technical Specifications Overview
- Professional planetary mixing movement for even, dead-angle-free mixing
- Multifunctional design for egg whipping, cream mixing, batter blending, and light dough kneading
- Seven capacity options from 10L to 80L
- Custom voltage: 220V/380V (10L–50L models), 380V (60L–80L models)
- Power range from 0.23KW to 3.75KW across model range
- Food-grade stainless steel bowl for food hygiene and corrosion resistance
- Heavy-duty cast iron body with anti-vibration design for stable operation
- Low noise output suited to continuous commercial use
- Standard dough hook, wire whisk, and mixing paddle included (10L–50L)
- Optional ball whisk and trolley for 60L and 80L models
Why Mixing Attachment Selection Matters in Commercial Production
Not every mixing task calls for the same tool, and selecting the right attachment directly affects texture, consistency, and output quality. The dough hook is designed for light dough kneading, gently developing structure without overworking the mixture. The wire whisk introduces air efficiently, making it the right choice for egg whipping, cream mixing, and delicate batters such as mousse and sponge cake. The mixing paddle handles denser mixtures — cake batter, stuffing, and frosting — blending thoroughly without incorporating excess air.
Having all three attachments as standard means production teams can move between different products and recipes without switching machines, keeping operations efficient and results consistent across every batch.
Technical Parameters and Capacity Range
| Parameter | YCM-10 | YCM-20 | YCM-30 | YCM-40 | YCM-50 | YCM-60 | YCM-80 |
|---|---|---|---|---|---|---|---|
| Model Name | 10L Luxury Planetary Mixer | 20L Luxury Planetary Mixer | 30L Luxury Planetary Mixer | 40L Luxury Planetary Mixer | 50L Luxury Planetary Mixer | 60L Luxury Planetary Mixer | 80L Luxury Planetary Mixer |
| Spec | Hook / Ball / Paddle | Hook / Ball / Paddle | Hook / Ball / Paddle | Hook / Ball / Paddle | Hook / Ball / Paddle | Ball / Trolley | Ball / Trolley |
| Voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 380V | 380V |
| Power | 0.23KW | 0.38KW | 0.75KW | 1.13KW | 1.5KW | 2.25KW | 3.75KW |
| Dimension (mm) | 430×440×670 | 520×530×830 | 620×620×1020 | 620×640×1070 | 680×680×1180 | 780×840×1350 | 780×840×1480 |
| Packing Size (mm) | 550×570×830 | 580×680×990 | 750×750×1210 | 750×750×1210 | 770×770×1320 | 1020×910×1570 | 1020×910×1670 |
| Net / Gross Weight | 57 / 79 kg | 83 / 110 kg | 150 / 193 kg | 162 / 205 kg | 217 / 252 kg | 334 / 382 kg | 364 / 412 kg |
Available Configurations and Customization Options
The commercial planetary mixer can be customized to match different production volumes, facility layouts, voltage requirements, and operational preferences.
Capacity Matching
Seven capacity options from 10L to 80L allow the machine to be matched to your current output requirements, whether you are running a boutique cake shop or a high-volume food factory production line.
Voltage Configuration
Custom voltage options, including 220V/380V for smaller models and 380V for larger units, ensure compatibility with local electrical standards across different export markets.
Attachment Options
Standard dough hook, wire whisk, and mixing paddle are included with every 10L–50L unit. An optional ball whisk and trolley are available for 60L and 80L models to support higher-volume mixing requirements.
Production Setup Integration
The mixer can be supplied as a standalone unit or incorporated into an existing production environment. For food factories and larger operations, our team can advise on configuration and layout to support efficient workflow and output targets.
Our Certifications
We provide certification and qualification documents to support international market access and customer quality assurance requirements.
Our Manufacturing Strength
With 35+ years of bakery equipment experience, Yucho manufactures every commercial planetary mixer in-house and supports customers with stable build quality, tested performance, and practical engineering service.
Our Manufacturing Strength
With 35+ years of bakery equipment experience, Yucho manufactures every commercial planetary mixer in-house and supports customers with stable build quality, tested performance, and practical engineering service.
Why Choose Yucho for Commercial Planetary Mixers
Project Support and Service
35+ Years of Bakery Equipment Experience
Yucho Bakery Equipment has more than 35 years of experience in bakery processing equipment manufacturing, with machines supplied to customers in more than 65 countries.
Custom Configuration Support
Our engineering team works directly with your production requirements to recommend the right capacity, attachment configuration, and voltage setup for your facility and output targets.
Fast Technical Response
After receiving your production requirements, we can usually provide a tailored machine solution proposal within 3 days.
Export Documentation and Shipment Support
We prepare export documentation and coordinate shipment arrangements to support international bakery equipment projects efficiently.
Factory and Quality Control
Direct Manufacturer, Not Just a Trading Company
Yucho Bakery Equipment manufactures its equipment directly rather than acting only as a trading intermediary, giving customers direct access to engineering and production teams.
In-House Manufacturing and Testing
Equipment is manufactured and tested in-house, allowing direct control over build quality and performance verification before shipment.
Machine Testing Before Shipment
Each machine is tested prior to shipment to confirm performance against agreed specifications and reduce commissioning risk on site.
Support for Inspection and Certification
We support customer or third-party inspection requests and can assist with certification documentation required for different export markets.
Related Products
Chocolate Depositor
Standard One Shot Depositor
TTJ40 Chocolate Tempering Machine
TYJ Chocolate Enrobing Machine with Cooling Tunnel
FAQs
What is a planetary mixing movement, and why does it matter?
A planetary mixing movement means the mixing attachment rotates around the bowl while simultaneously spinning on its own axis. This dual motion covers the entire bowl surface, eliminating dead angles and ensuring thorough, even mixing across every batch.
How is a commercial planetary mixer different from a spiral dough mixer?
Spiral dough mixers are built specifically for heavy bread dough. A commercial planetary mixer is multifunctional, excelling at egg whipping, cream mixing, batter blending, and light dough kneading — making it the better fit for cake shops, bakeries, and food production operations that handle a variety of product types.
What mixing tasks can this machine handle?
The commercial planetary mixer handles egg whipping, cream mixing, mousse preparation, sponge cake batter blending, frosting mixing, stuffing preparation, and light dough kneading for bread and pizza bases.
What capacities are available?
The machine is available in 10L, 20L, 30L, 40L, 50L, 60L, and 80L capacities, suiting operations from small bakery shops to industrial food factories.
What attachments are included as standard?
Every 10L–50L unit includes a dough hook, wire whisk, and mixing paddle. The 60L and 80L models include a ball whisk and trolley, with additional attachment options available.
Can the mixer be configured for different voltage standards?
Yes. Voltage options include 220V/380V for the 10L–50L models and 380V for the 60L–80L models, supporting installation across different markets.
Is the mixing bowl food-safe?
Yes. The bowl is manufactured from food-grade stainless steel, meeting food hygiene requirements while remaining corrosion-resistant and easy to clean between batches.
Is the machine suitable for continuous, high-volume production?
Yes. The heavy-duty cast iron body and anti-vibration design support stable operation with low noise output, even during extended production runs.
What information should we provide before requesting a quotation?
We recommend sharing your target products, required production capacity, preferred machine model or capacity, installation voltage, and any plans to integrate the mixer into an existing production setup.
Do you provide installation guidance and after-sales support?
Yes. Our team provides technical support throughout the ordering process and can assist with installation guidance and after-sales questions once your machine has shipped.
