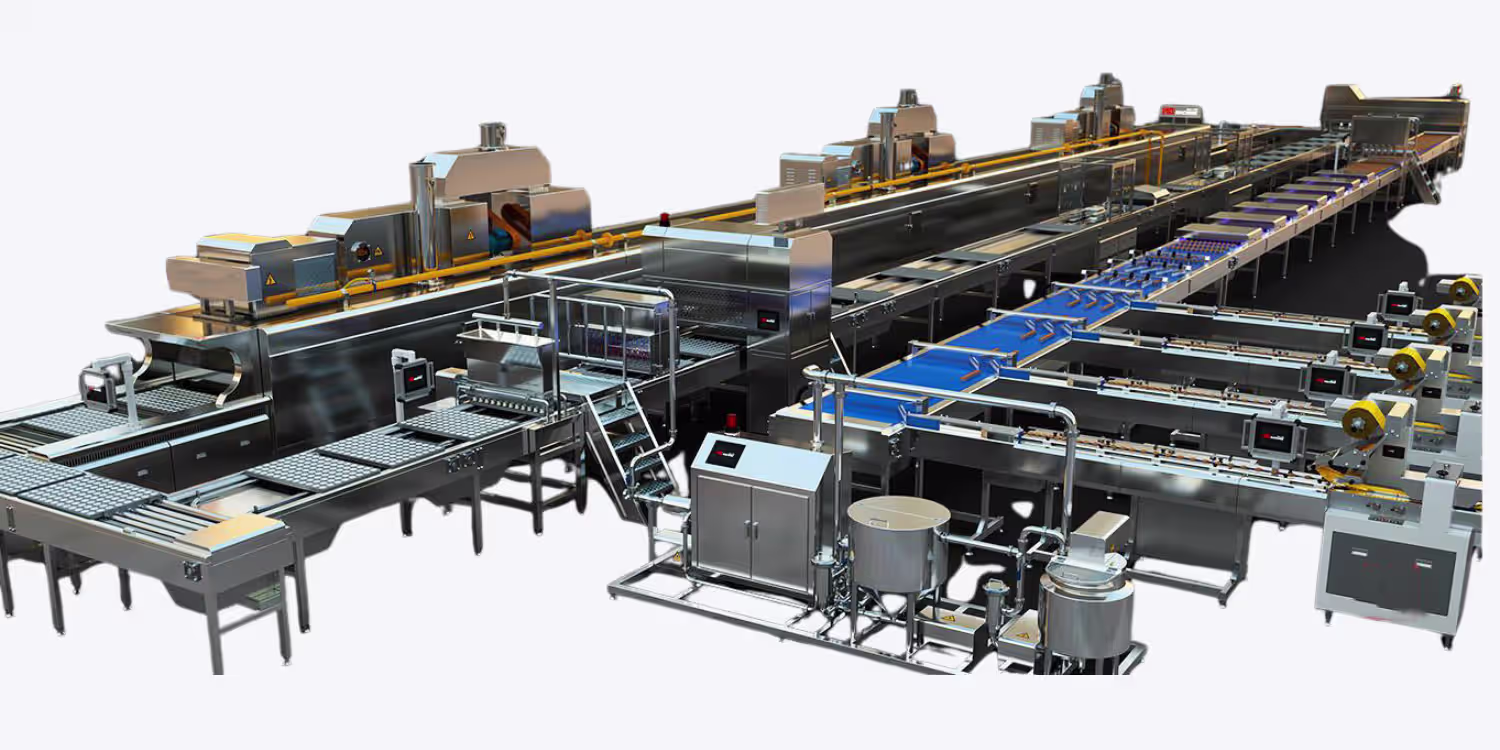

Automatic Cupcake Production Line
Precise Depositing, Continuous Baking, and Automated Packing for High-Output Cupcake and Muffin Production
In industrial cupcake and muffin production, depositing accuracy, baking consistency, and product handling directly affect unit weight, product appearance, and yield. Yucho’s automatic cupcake production line integrates cup feeding, batter depositing, baking, demolding, cooling, filling, decorating, packaging, and tray washing into one continuous process. This helps manufacturers maintain stable product quality across long production runs and multiple shifts.
Whether you produce standard cupcakes, muffins, or filled paper cup cakes, we can match the line configuration to your plant layout, output requirements, and automation level.
Trusted Cupcake Production Line Manufacturer
Yucho Bakery Equipment manufactures industrial cake and bakery machines in China for customers in 65+ countries. From standalone equipment to complete production lines, we support food manufacturers with line design, in-house assembly, factory testing, and export delivery.
What Is an Automatic Cupcake Production Line?
An automatic cupcake production line is an industrial continuous production system that feeds paper cups, deposits batter, and bakes, cools, fills, and packs cupcakes and muffins under controlled production conditions. Trays move through each stage in a linked process, so products pass from depositing to packaging without manual transfer between machines.
For industrial bakeries producing cupcakes, muffins, lava cakes, or cream-filled cakes, accurate depositing and even baking are key to unit weight, product height, and finished-product appearance. Compared with manual or semi-automatic methods, a continuous cupcake production line delivers more stable portion control, more repeatable output, and lower labor dependence.
Key Advantages of the Automatic Cupcake Production Line
Continuous Automated Production from Cup Feeding to Packaging
The line integrates cup loading, batter depositing, baking, cooling, filling, and packaging into one linked workflow, with optional sections for sprinkling and decorating. This reduces manual handling between stages, lowers labor requirements, and helps keep product flow stable from start to finish.
Servo-Controlled Depositing for Accurate Portion Weight
The servo-controlled depositing system delivers a set batter volume into each paper cup with accurate weight control. This supports consistent cupcake and muffin size, uniform product height, and lower giveaway caused by overfilling.
Stable Baking for Uniform Color, Rise, and Texture
The baking section provides even heat distribution and controlled baking conditions across each tray. This supports uniform rise, consistent surface color, and a stable crumb structure throughout continuous production.
Synchronized Operation for High-Output, Consistent Production
Continuous linked operation keeps depositing, baking, cooling, and packaging running in coordination. This helps maintain stable product weight, size, and appearance while supporting efficient large-scale bakery production.
One Line for Cupcakes, Muffins, and Other Paper Cup Cakes
In addition to cupcakes, the line can produce muffins, lava cakes, cream-filled cakes, and other paper cup bakery products. This gives manufacturers more flexibility to expand product variety and improve equipment utilization on one production platform.
Automatic Tray Washing and Hygienic Design
The integrated tray washing section cleans baking trays as they return to the start of the line, reducing manual cleaning work and supporting continuous operation. The machine body is made from SUS304 stainless steel to support daily cleaning and meet hygiene requirements in industrial bakery production.
Applications of the Cupcake and Muffin Production Line
The automatic cupcake production line is designed for continuous production of cupcake, muffin, and other paper cup bakery products, including:
- Cupcakes
- Muffins
- Lava cakes
- Cream-filled cupcakes
- Topped cupcakes and muffins
- Customized paper cup cakes with different fillings and toppings
The line can be supplied as a complete system or integrated with existing equipment based on your product range, production capacity, plant layout, and automation requirements.
How the Automatic Cupcake Production Line Works
From cup feeding to final packaging, the line is designed to deliver accurate depositing, stable baking performance, controlled cooling, and continuous product flow across each production stage.

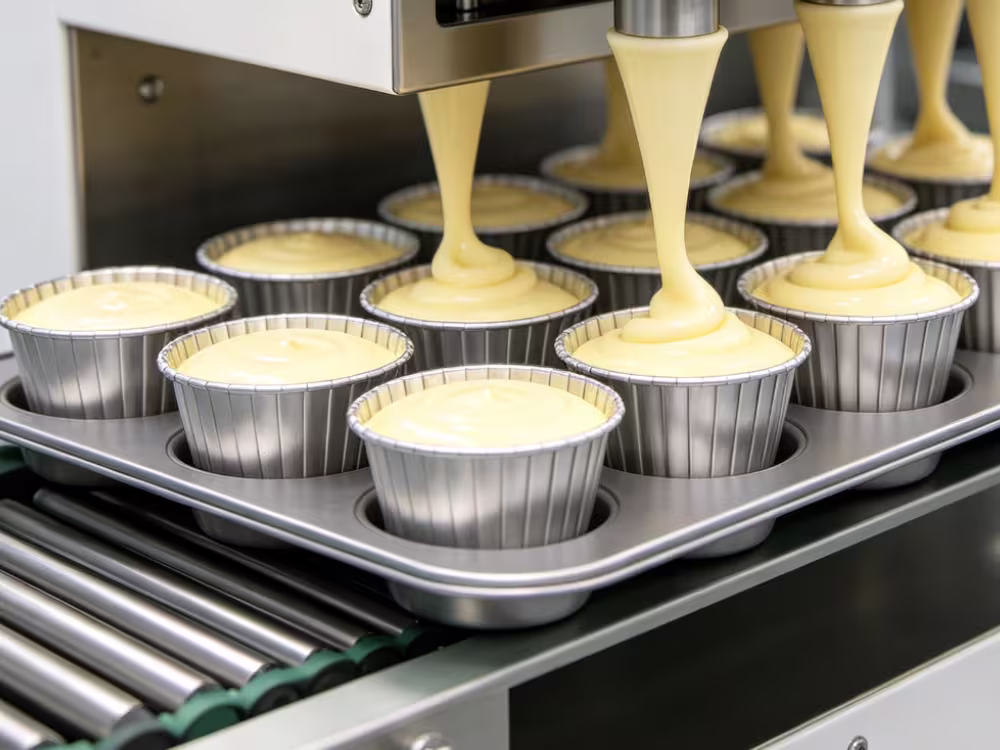

Cup Feeding and Batter Depositing
Paper cups are automatically loaded into baking trays, and the servo-controlled depositor fills each cup with a set batter volume. Optional sprinkling units can apply toppings before baking to support consistent product appearance.
Continuous Baking
Filled trays move through the baking section, where controlled heat and stable baking time help produce cupcakes and muffins with uniform rise, even color, and consistent texture.
Demolding, Cooling, and Filling
After baking, products are demolded from the trays and conveyed through the cooling section to reach a stable handling temperature. Filling and decorating units can then apply cream or toppings based on the required product format.
Packaging and Tray Washing
Finished products are transferred to the packaging section for final packing and shipment. Empty trays pass through the automatic tray washing unit and return to the start of the line for the next production cycle.
Main Features and Technical Specifications Overview
- Continuous production line for cupcakes, muffins, and paper cup cakes
- Batter mixing system for uniform batter preparation
- Automatic cup feeding and tray loading
- Servo-controlled batter depositor with accurate weight control
- Optional sprinkling unit for toppings before baking
- Baking section with even heat distribution
- Automatic demolding of baked products
- Cooling section for stable product temperature
- Cream filling and decorating units
- Automatic packaging section
- Automatic baking tray washing and return
- Compatible with baking trays from 400 to 600 mm
- SUS304 stainless steel machine body
- Linked operation for continuous, high-output production

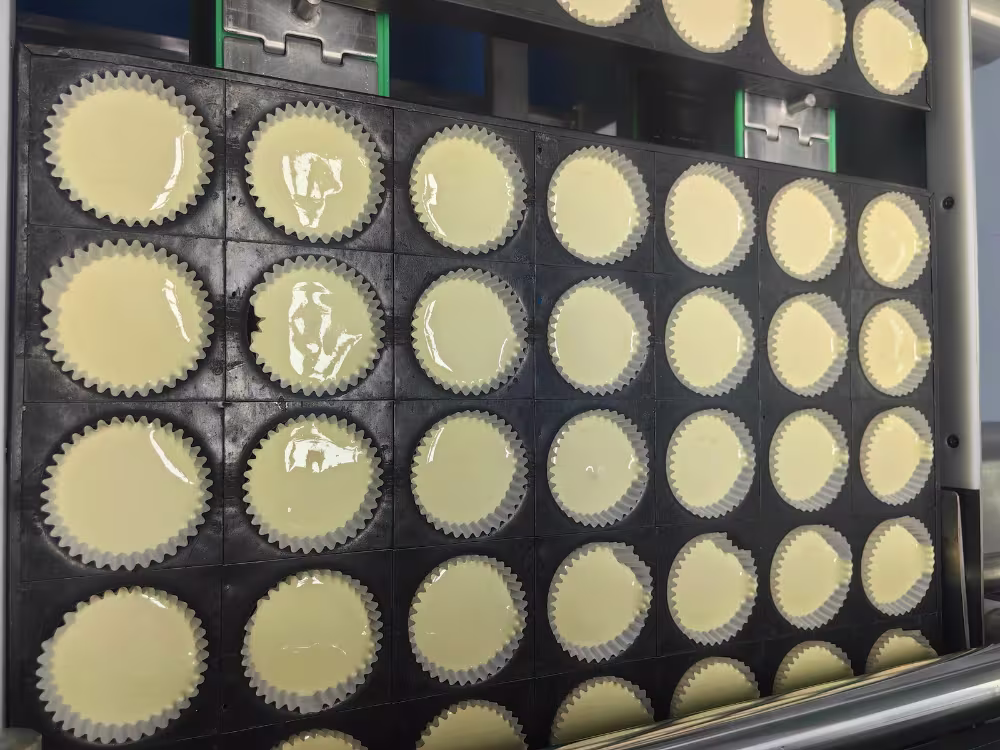

Why Depositing Accuracy Matters in Cupcake Production
Batter weight per cup is a key process variable affecting final cupcake and muffin quality. Underfilled cups can lead to short, uneven products that fall below weight specifications. Overfilled cups may overflow during baking, create irregular tops, and increase ingredient giveaway.
Manual or semi-automatic depositing makes it difficult to hold portion weight within a narrow range across a full shift. A servo-controlled depositing system, combined with linked tray movement, lets production teams keep unit weight within a defined tolerance, reducing waste and improving consistency batch after batch.
Technical Parameters and Capacity Range
| Parameter | Specification |
|---|---|
| Model | FPM-3500S |
| Capacity | 300–1000 kg/hour |
| Dimensions (L × W × H) | 50000 × 30000 × 1650 mm |
| Power Consumption | 53.0 kW (AC 380 V) |
| Baking Tray Size | 400–600 mm |
| Machine Body Material | SUS304 stainless steel |
| Country of Origin | China |
| Note | Final specifications vary by configuration. Contact us for parameters matched to your project. |
Available Configurations and Customization Options
The automatic cupcake production line can be customized to match different plant layouts, production capacities, product types, and full-line integration requirements.
Capacity and Tray Size Matching
Line capacity can be matched to your target output within 300 to 1000 kg/hour. Tray sizes from 400 to 600 mm can be selected based on your cup size, product format, and oven loading requirements.
Line Layout and Footprint
The line layout can be planned around your available floor space, product flow, and utility points to support efficient installation and operation.
Product and Process Sections
Sprinkling, filling, decorating, and packaging sections can be added or adjusted for cupcakes, muffins, lava cakes, or cream-filled products, depending on your product portfolio.
Connection with Upstream and Downstream Equipment
The line can be engineered to connect with existing batter mixing equipment, sponge cake aerators, or packaging systems as part of a complete automatic cake production line.
Our Certifications
We provide certification and qualification documents to support access to international markets and customer quality assurance requirements.
Our Manufacturing Strength
With 35+ years of bakery equipment experience, Yucho manufactures every cupcake production line in-house and supports customers with stable build quality, tested performance, and practical engineering service.
Our Manufacturing Strength
With 35+ years of bakery equipment experience, Yucho manufactures every cupcake production line in-house and supports customers with stable build quality, tested performance, and practical engineering service.
Why Choose Yucho for Cupcake Production Equipment
Project Support and Service
35+ Years of Bakery Equipment Experience
Yucho Bakery Equipment has more than 35 years of experience in bakery processing equipment manufacturing, with machines supplied to customers in more than 65 countries.
Custom Layout and Solution Support
Our engineering team works directly with your production requirements to recommend the right line configuration, capacity, and layout for your facility.
Fast Technical Response
After receiving your production requirements, we can usually provide a tailored production line proposal within 3 days.
Export Documentation and Shipment Support
We prepare export documentation and coordinate shipment arrangements to support international bakery equipment projects smoothly.
Factory and Quality Control
Direct Manufacturer, Not Just a Trading Company
Yucho Bakery Equipment manufactures its equipment directly rather than acting only as a trading intermediary, giving customers direct access to engineering and production teams.
In-House Manufacturing and Testing
Equipment is manufactured and tested in-house, allowing direct control over build quality and performance verification before shipment.
Machine Testing Before Shipment
Each line is tested prior to shipment to confirm performance against agreed specifications and reduce commissioning risk on site.
Support for Inspection and Certification
We support customer or third-party inspection requests and can assist with certification documentation required for different export markets.
Related Products
Chocolate Depositor
Standard One Shot Depositor
TTJ40 Chocolate Tempering Machine
TYJ Chocolate Enrobing Machine with Cooling Tunnel
FAQs
What is the difference between an automatic cupcake production line and a semi-automatic setup?
An automatic cupcake production line links cup feeding, depositing, baking, demolding, cooling, filling, packaging, and tray washing into one continuous process. Compared with a semi-automatic setup, it reduces manual transfer between stages and helps improve consistency in product weight, size, and finished appearance.
What products can this cupcake production line make?
The line is designed primarily for cupcakes and can also produce muffins, lava cakes, cream-filled cakes, and other paper cup bakery products with different fillings and toppings.
Can the line produce both cupcakes and muffins?
Yes. Depositing volume, tray size, and process sections can be configured for different cup sizes and batter types, allowing manufacturers to produce cupcakes and muffins on the same production line.
How is batter weight controlled during depositing?
The servo-controlled depositor delivers a set batter volume into each cup with accurate weight control. This helps maintain consistent product weight, size, and height while reducing giveaway from overfilling.
What capacity and space does the line require?
Model FPM-3500S covers capacities from 300 to 1000 kg/hour. Typical line dimensions are 50000 × 30000 × 1650 mm, depending on layout and configuration. We can plan the layout according to your available floor space and plant conditions.
How are the baking trays cleaned?
The line includes an automatic tray washing section that cleans trays and returns them to the start of the line for the next production cycle. This reduces manual cleaning work and supports continuous production.
What information should we provide before getting a quotation?
We recommend sharing your target products, required production capacity, cup size, product weight, filling or topping requirements, available installation space, power conditions, and any plans to integrate with existing equipment.
Do you provide installation guidance and after-sales support?
Yes. Our team provides technical support throughout the ordering process and can assist with installation guidance, commissioning, and after-sales support after delivery.
